Connect the device that will run Link, then choose local execution or a cloud route with optional backups for Workspace or your software.
The current setup has three stages: Connect → Set up → Ready. Use the current Link package for your Control account. Earlier versions can show the previous model-first setup.
For the macOS desktop walkthrough, you need an Apple Silicon Mac, an available device slot and internet access. The package installs for your macOS user. Allow disk space and memory for the model and its engine. Terminal alternatives are under Connect your device.
Use the same account and environment in Control and Aventail Link. The current production package opens control.aventail.co.uk. Production and development registrations are separate.
AVENTAIL / CONTROL
Sign in to the intended account
At a glance
Use your existing sign-in method
Open production Control or your organisation’s environment. Use the same account when Link opens its device approval page.
Process overview
1
ControlOpen the intended environment.
2
Sign inUse your existing Google, GitHub or email sign-in method.
3
Connect a deviceInstall Link, then check the account and computer before approval.
Step 1 of 1: Use your existing sign-in method.
Process diagram for current Control sign-in.Read the sign-in steps
Open Control. Choose Continue with Google, GitHub, or enter your email and password and select Sign In. Complete authentication to open the Dashboard.
On first sign-in, review the Terms & Conditions and accept if you agree. Then use Connect a device from the Dashboard.
In personal Control, choose Connect a device. The Desktop app tab offers macOS Apple Silicon, Windows x64 and Linux x64 packages. Finish setup in Link, then return to Control. Organisation screens can differ.
AVENTAIL / CONTROL
Connect a device
1 / 3
Full view
Connect a device
Choose Desktop app in Connect a device. Install Link on the computer you want to use, then finish setup there.
Find the section
Install, finish setup, then return
The outlined area is shown close up on the next slide.
Close-up
Install, finish setup, then return
Choose the installer for the computer, finish sign-in and setup in Link, then return to Control. Downloading the installer alone does not register it.
Slide 1 of 3: Connect a device.
Personal Control · captured 1 November 2026. Use the arrows or progress marks to move between slides.
If the Dashboard shows Finish connecting your device, finish sign-in and approval in Link, then choose Refresh devices. Not now hides the progress card; it does not undo approval, revoke a key or stop an operation. After a reload, inspect your saved device list before repeating registration.
The production Control walkthrough shows Register your first device, with Platform → Connect → Deploy. This is separate from Aventail Link's Connect → Models → Serving → Finish desktop setup; an organisation's development interface can differ.
AVENTAIL / CONTROL
Connect your first device
1 / 6
Full view
Control setup wizard
The setup wizard opens over the dashboard. Start with the Platform stage.
Find the section
Platform selection
The outlined area is shown close up on the next slide.
Close-up
Choose a platform
Choose macOS for the Apple Silicon desktop app, then Continue. Terminal alternatives are under Advanced.
Slide 04
Download and connect
Install Link, then sign in with the same Control account. Wait for your Mac to connect before continuing.
Older Control capture. Check the downloaded version; Aventail Link 2.0.0 has a different installer and setup.
Slide 05
Deploy the starter model
Choose Deploy model and keep Link running. After deployment, open Serving to start the model.
The device name and available model can differ.
Slide 06
Resume setup
Close the wizard to minimise it. Use Finish setup to return; check deployment progress before retrying.
Slide 1 of 6: Control setup wizard.
Control setup screens captured 28 September 2026. Use the arrows or progress marks to move between slides.Read the wizard steps
After first sign-in, the wizard opens over the Control Dashboard with macOS · Alpha · Apple Silicon selected. If it is minimised, use Finish setup at the bottom-right.
Apple Silicon Mac: select Continue for the desktop app. Older Control screens label the button Download Locai Link for macOS; those labels belong to the earlier walkthrough. Use the current installation steps below; the new setup follows Connect → Set up → Ready.
Terminal installation: expand Advanced: install via terminal and choose Linux / macOS (terminal) or Windows PowerShell. Follow headless registration.
Select the × in the wizard header to minimise it, then Finish setup to reopen it. Before registration, the paused step also survives a page reload.
If a reloaded or second tab cannot resume deployment, check Notifications → Deployments before trying again. Once the model is Deployed, start serving; you do not need to download it again.
Choose desktop sign-in or headless registration, then confirm the device is Online.
Download Link for macOS (Apple Silicon). This is the production release. For a development or staging account, use the download offered by that Control environment.
AVENTAIL / LINK
Connect, set up and get ready
1 / 5
Full view
Choose how this computer will run AI
The new setup has Connect, Set up and Ready. This capture follows browser approval.
Find the section
Choose local or cloud
The outlined area is shown close up on the next slide.
Close-up
Choose local or cloud
After approving the device, choose Run a local model or Use a cloud model. The cloud choice opens this device in Control for provider, model and backup selection.
Slide 04
Configure the route in Control
Choose the first model, optional backups, then review and apply. Wait for Link to confirm the settings and prepare any local backup.
Process overview
1
First modelChoose an authorised connection and model.
2
BackupsAdd optional ordered destinations; this computer is last.
3
ReviewCheck downloads, apply, and wait for Link.
Slide 05
Check the ready screen
Link confirms the applied order: Anthropic first, then Gemma4 on this computer. Choose Open Link or Use your model in an app.
Ready confirms setup; a cloud response does not establish that automatic failover has been tested.
Slide 1 of 5: Choose how this computer will run AI.
Link 2.4.0 · Apple Silicon · captured 13 November 2026. Use the arrows or progress marks to move between slides.Read the installation and registration steps
Download the current macOS Apple Silicon .pkg for your Control environment. The illustrated macOS walkthrough uses 2.4.0.
Open it and select Continue → Install. Wait for The installation was successful, then select Close. The observed package installs for the current user without administrator authentication.
In Aventail Link Setup → Connect, select Sign in with Aventail. Compare the browser approval code with Link and check the account and computer before approving.
In 2.4.0’s Set up stage, choose Run a local model, Use a cloud model or Decide later. For cloud-first setup, Link opens the device’s routing page in Control. Choose a saved provider connection or connect a provider, allow this device to use it, and select a model.
Add optional backups, review the order and select Apply routing. A local backup is last. Link downloads and prepares it without requiring ordinary serving to be enabled. Follow the complete routing and backups walkthrough.
Wait for Link’s Ready screen and inspect the destination order. Choose Open Link or Use your model in an app. Confirm the device has reported online and send a harmless test request. Applied confirms the route; local backup readiness and a completed response need separate checks.
Earlier 2.3.x setup continues through Models → Serving → Finish. For that local-model path, choose and download a model, wait for Downloaded · Ready for the next step, enable serving if required, and finish setup.
AVENTAIL / LINK
Download and serve your first model
1 / 5
Full view
Download and serve your first model
After browser approval, Link continues through Models, Serving and Finish. This capture shows the model download has completed.
Find the section
Wait for the completed download
The outlined area is shown close up on the next slide.
Close-up
Wait for the completed download
In Models, choose a suitable model and select Download model. When the state is Downloaded · Ready for the next step, select Continue.
Slide 04
Choose Start serving
Serving makes the downloaded model available to apps through Link. Select Start serving, or Do this later if you are not ready. It normally loads on the first request.
Slide 05
Finish setup and verify
At Finish, choose Open Link or Use your model in an app. If you skipped downloading or serving, complete those steps in Models before testing a response.
Process overview
1
Open LinkInspect Models, Connected apps and Settings.
2
Check ControlConfirm the intended device is Online.
3
Test a responseUse a harmless prompt before real work.
Slide 1 of 5: Download and serve your first model.
Aventail Link 2.3.2 on macOS · captured 2 November 2026. Model and memory values are examples. Use the arrows or progress marks to move between slides.
The package installs under your user Library and launches Link for setup; start at login is established when setup finishes. A move from 1.x requires a new registration and model deployments; it does not migrate the old installation. See the illustrated installation walkthrough or macOS installation help.
Read the headless installation steps
AVENTAIL / CONTROL
Install Link from a terminal
1 / 3
Full view
Headless / CLI installation
In Connect a device, choose Headless / CLI and select the target terminal. Run the command on the computer you want to connect.
Find the section
Copy the install command
The outlined area is shown close up on the next slide.
Close-up
Run the installer on the target computer
Copy the install command for the chosen terminal. Register separately with a setup key; never include the key in screenshots or shared logs.
Slide 1 of 3: Headless / CLI installation.
Personal Control · Linux/macOS installer panel · 1 November 2026. Use the arrows or progress marks to move between slides.
Use Aventail Link 2.x for current terminal installations. It supports Linux x64 with systemd, macOS Apple Silicon and Windows x64 through PowerShell. Check platforms and release channels first.
In the intended Control account, open Connect a device → Headless / CLI and use the Terminal selector to choose Linux / macOS or Windows PowerShell.
Run the install command on that device. These examples download the production release:
The installer verifies the release checksum, installs for your user and starts the background service. Without a key, the service waits for registration. If the installer changes PATH, open a new terminal or use the executable path it prints. See file locations and Linux server startup.
Back in Control, set Key valid for (hours) and select Create a setup key. A registration key is single-use; the default validity is 24 hours, with a supported range of 1–168 whole hours.
Copy the whole current registration command from Control and run it on the target device. Production Link 2.3.x uses its Aventail management address by default; old LINK_API_BASE overrides are no longer read. Personal Control shows a separate registration command after the keyless install command:
Replace YOUR_REG_KEY with the generated key. Keep it out of screenshots, source control and shared logs. The environment-variable alternatives keep keys out of process arguments; pasted commands can still remain in shell history. For another environment, use its current package and complete command; do not add an old LINK_* override. Keep the registration key private.
Run aventail status, then confirm the device is Online in that same Control account. If the key expired or was already used, generate another and repeat registration; do not reinstall only to replace a key.
Personal Control shows installation and registration separately. A combined install-and-register command is available for unattended setup; organisation Fleet screens provide combined enrollment commands. Put the environment variables on the shell after the pipe:
Fleet enrollment uses AVENTAIL_FLEET_KEY instead. Copy the fleet command from Add devices; see fleet enrollment.
Locai Link (Legacy Aventail) 1.x registration screenshots
AVENTAIL / LEGACY LINK
Headless registration in Locai Link (Legacy Aventail) 1.3.2
1 / 4
Full view
Device registration in Control
Register Device opens a dialog over the dashboard. Choose the installation path for the target machine.
Find the section
Register Device dialog
The outlined area is shown close up on the next slide.
Close-up
Headless device
Choose the target operating system, run its installer there, then generate and use a registration key.
Locai Link (Legacy Aventail) 1.3.2 registration example. Match the installer and command to your version; this capture shows Windows PowerShell.
Slide 04
Confirm Online
Check the new record belongs to the intended account. Registration success alone does not establish connectivity.
Process overview
1
RegisterUse the intended account
2
Run LinkKeep its service running
3
Check DevicesConfirm Online
Slide 1 of 4: Device registration in Control.
Older headless registration capture; match commands to the package installed on the target device. Use the arrows or progress marks to move between slides.
These earlier captures show the old locai command. Follow the current Aventail commands above for a new installation. get.locai.co.uk now serves Aventail releases too; it no longer selects a 1.x installer.
Open Devices, identify the new device and confirm Online. Match the name and computer details reported by Link. The headless CLI also supports --device-name; names alone do not prove that you selected the intended machine. A registration success message alone does not establish that the background service is online.
In personal Control, refresh the device list after approval. A device registered to another account will not complete this account’s setup. Check the account before repeating registration.
If the device stays Waiting for first report or shows Device is offline, check that Link is running, retain the exact error and follow Link troubleshooting.

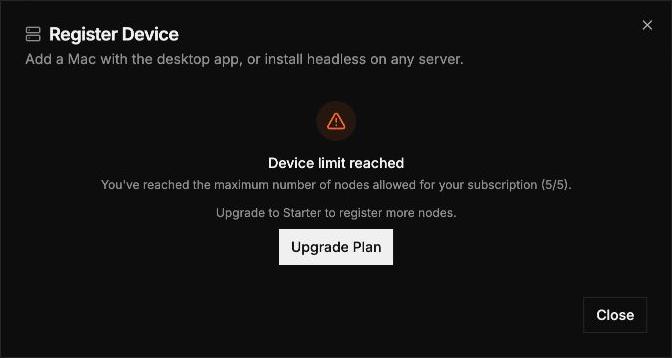

If Control shows Device limit reached, review Plan & usage, or ask the account owner to make capacity available. Preserve existing devices you do not own.
Choose a compatible model and an Online device with room for both the model and its engine. Aventail setup can download and serve a model directly; do not deploy another copy if it is already installed.
AVENTAIL / CONTROL
Browse the Aventail Library
1 / 3
Full view
Browse the Aventail Library
Open Models in personal Control. Use search and Model ownership to find a model, then open its Details.
Find the section
Choose library models
The outlined area is shown close up on the next slide.
Close-up
Choose library models
Use Model ownership to choose Aventail Library. Open Details for a model; use Visit devices to manage device installations.
The captured library rows show Processing in registry with an empty Version because of a known Control display issue. Use this image to locate the controls; verify download availability on the intended device.
Slide 1 of 3: Browse the Aventail Library.
Personal Control · captured 1 November 2026. Use the arrows or progress marks to move between slides.Read the deployment steps
For your first model, use Link's Models tab. Browse the catalogue, choose a compatible model and start its download. Alternatively, browse Models → Aventail Library in personal Control and open Details; Visit devices leads to device installations and actions.
Check the model's format, download size, required memory and intended tools. The captured Processing in registry labels and empty versions reflect a known Control display issue. Check download availability on the intended device rather than relying on that label alone.
If you selected a model during Link setup, check whether it is already installed before deploying it again. Custom uploads and image/audio classification require different compatibility checks and inputs from this language-model walkthrough.
Keep Link running. Watch its download progress and the reported outcome in Control’s Activity panel. An accepted command is not a completed download. Read the final result before retrying.
Serving makes the installed model available to Workspace and API clients. Use Start serving for an installed model in Link. Keep Link running while you use it.
AVENTAIL / LINK
Manage local models and backups
1 / 6
Full view
Manage local models and backups
Models distinguishes the active cloud destination from a prepared local backup. Model details provides the Model ID; Serving settings provides context and memory controls.
Find the section
Check the serving destination
The outlined area is shown close up on the next slide.
Close-up
Check the serving destination
Models shows the cloud destination in use and a local model marked Backup. A prepared backup loads when needed; Start serving is a separate local-serving control.
Slide 04
Copy the Model ID
Expand Model details and use Copy beside Model ID for a manual client. The downloaded file and its size appear below. Remove download removes this device copy.
Slide 05
Review context and memory
Auto selected 64K on this device, with a 2.8 GB estimate. Keep loaded can reduce the wait for a first request while using memory. Values depend on the model and hardware.
Slide 06
Apply deliberate memory changes
Advanced memory settings contains Fit more context, using 8-bit context memory with a possible quality trade-off. Select Apply after a change. No change is pending in this capture, so Apply is disabled.
Slide 1 of 6: Manage local models and backups.
Aventail Link 2.4.1 on macOS · captured 14 November 2026. Account/device identity obscured. Model names and memory values are examples. Use the arrows or progress marks to move between slides.Read the serving steps
In Link, open Models and choose Start serving for an installed compatible model.
Read its state. Ready to serve can precede loading into memory; the first request may load the model. Loaded and a completed response are stronger checks than an enabled configuration.
Open the model's serving settings when you need to change context length, Keep loaded or Fit more context. Inspect the memory estimate and apply the intended change.
Send a short request from Connect or the local API. If it fails, preserve the error and check Link's model state.
Personal Control groups device actions under Devices; an older organisation interface can have a separate Serving page. In either interface, wait for the reported command outcome and verify locally.
The Link machine's reachable address and serving port, followed by /v1
Docker container
An address reachable from inside the container; see Open WebUI
Replace 8100 with your actual port. 0.0.0.0 is a server bind address, not a client destination. A network address shown in Control does not establish that it is reachable or protected for remote use.
Use Stop serving in Link, or the model’s serving control for the intended device in Control, and confirm the stopped state. Stopping interrupts requests using that model, but it stays installed for next time. To free disk space, see Removing models.
